Shenzhen Housing Lighting Co., Ltd.
 |
| Place of Origin: | China |
| Brand Name: | HS |
| Certification: | CE |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | Negotiation |
| Lifespan: | >50,000 Hours | Product Name: | LED Downlight |
|---|---|---|---|
| Power: | 8W/12W/20W/24W/36W | Material: | Aluminum |
| CRI: | >80 | Light Source: | COB |
| Beam Angle: | 15°/24°/38°/60° | Light Color: | 2700K-6500K |
| Name: | Commercial LED Lights | ||
| Highlight: | 2700K Commercial LED Lights,6500K Commercial LED Lights,Commercial LED Downlight |
||

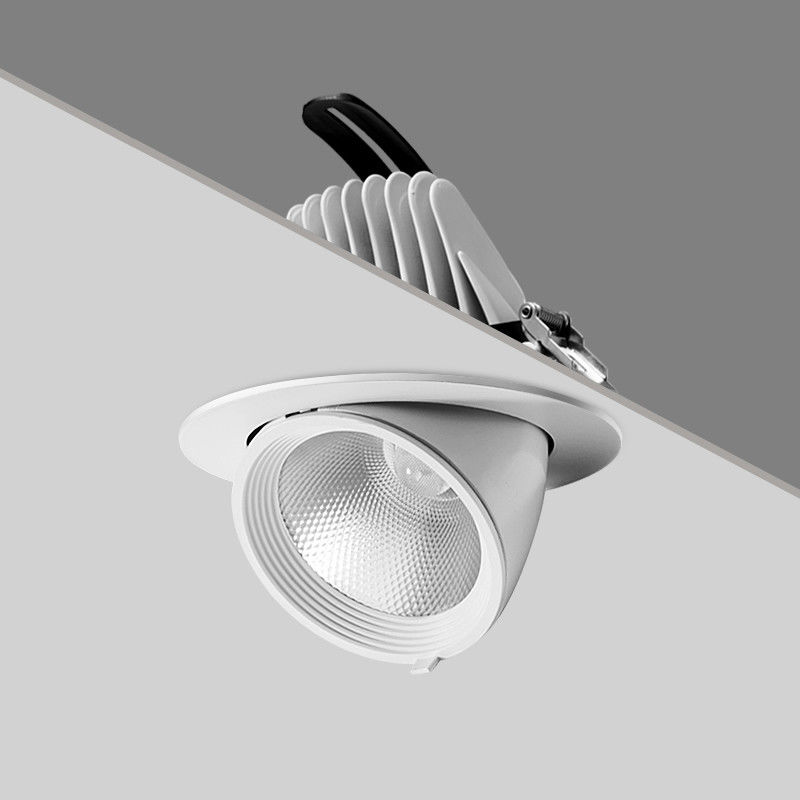

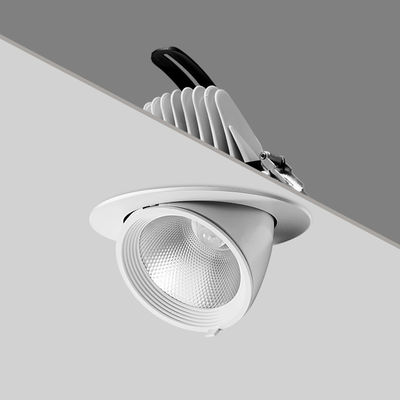

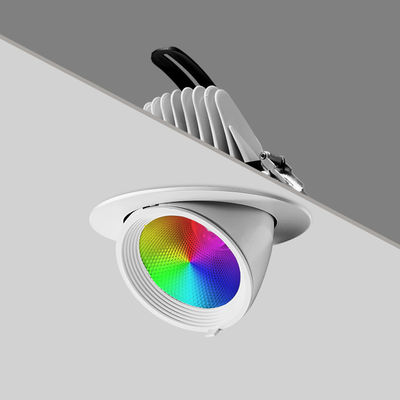

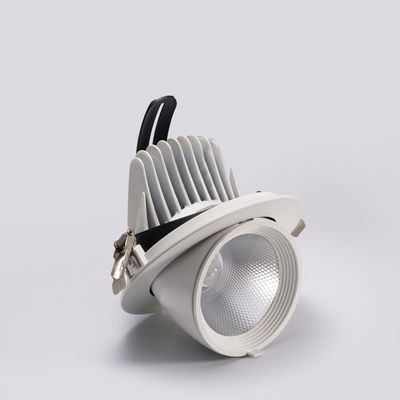

Aluminum It Can Rotate 360° Gimbal LED Downlight Tilt Outward 90°
Our LED Downlight is a perfect choice for ceiling mounted LED lighting solutions. It is made of premium aluminum ,and can rotate 360° and tilt outward 90°, There are multiple beam angles to choose from 15°/24°/38°/60°,delivering a warm white, white, or daylight color light. With a CRI of more than 80, our LED Downlight is the perfect choice for surface mounted downlight applications.
1. Exquisite Surface Processed, Special Looking to Be Unique.
2. Adopt High Quality COB LED Compliant with LM-80, Lifespan Warranted.
3. 6063 Aluminum,Tempered glass cover&Aluminum reflective cup,long lifespan.
4. Professional design of optics,no shadow,no light spot.
5. It can rotate 360° and tilt outward 90°.
6. Mainly used in factory,supermarket.
7. External Current LED Driver, Isolating Solution, Safe and Reliable.
| Model NO. | HS-DL-E-1-ND | HS-DL-E-2-ND | HS-DL-E-3-ND | HS-DL-E-4-ND | HS-DL-E-5-ND | ||
| Actual Size | φ95*70MN | φ114*95MM | φ138*120MM | φ165*145MM | φ190*165MM | ||
| Power | 8W | 12W | 20W | 24W | 36W | ||
| Luminous(lm) | 800LM | 1200LM | 2000LM | 2400LM | 3600LM | ||
| Color Temp | 2700-6500K | ||||||
| Lighting effect | 100LM/W | ||||||
| Beam angle | 15°124°138°160° | ||||||
| CRI | 80-85Ra | ||||||
| P.F | >0.9 | ||||||
| Input Voltage | AC200-240V,50/60Hz | ||||||
| Work Temp | -20-50℃ | ||||||
| Main Material | Aluminum | ||||||
| Frame color | White | ||||||
| Warranty | 5Years | ||||||
| Certification | CE,RoHs | ||||||
|
Remarks: HS-DL-E-1-TD |
HS-DL-E-2-TD HS-DL-E-3-TD |
HS-DL-E-4-TD HS-DL-E-4-1D HS-DL-E-4-DD |
HS-DL-E-5-TD HS-DL-E-5-1D HS-DL-E-5-DD |
TD:Triac 1D:0-10V DD:DALI |
Dimmable Dimmable Dimmable |
||
lt is designed for general lighting applicationsin office, supermarket, shop, school, hotel, etc.lt is also widely used for public areas, such asstairway, lobby, reception, corridors etc.
We are committed to providing our customers with the best technical support and service for our LED Downlight product. Our team of highly trained and certified technicians is available to answer any questions you may have regarding installation, operation, and maintenance of your LED Downlight.
We offer online technical support and service via our website and email, as well as telephone support. In addition, we provide on-site technical assistance for installation, repair, and troubleshooting of your LED Downlight.
We offer 5 years warranty for almost all of our led downlights. Any non-artificial damaged parts within warranty period should be covered a free replacement by us. We will bear the shipment cost.
