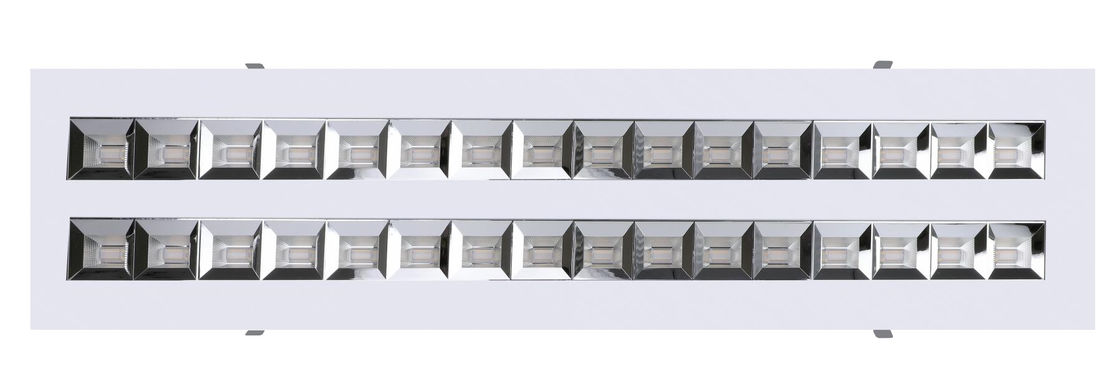

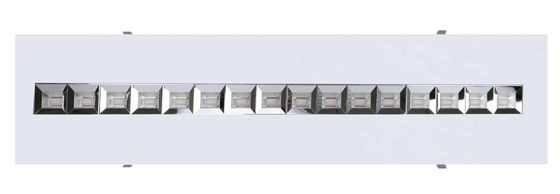

140LM/W LED Grille Panel Light 1600*400mm Dali Dimmable Recessed Installation

Product Details:

Place of Origin:	China
Brand Name:	HS
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiation

Contact Now

Detailed Product Description

Product Name:	LED Grille Panel Light	Beam Angle:	70°
Warranty:	5 Years	Voltage:	AC100-240V
Material:	PC Lens+Iron	Light Source:	LED
Installation:	Recessed Installation/ Surface Mounting/ Hanging Installation
Highlight:	140LM/W LED Grille Panel Light , LED Grille Panel Light 1600*400mm , Dimmable Flat Panel LED Lights

Optical Lens 140LM/W IK09 UGR<16 LED Gille Panel Light 1600*400mm Dali Dimmable Recessed Installation

Product Description:

LED Gille Panel Lights

Our LED Gille Panel Lights offer a flexible and reliable lighting solution for a variety of uses, ranging from indoor spaces to exterior solar lighting. Featuring high-quality LED technology, our lights provide a long-lasting source of illumination with a beam angle of 70° and a lifespan of up to 50,000 hours. Furthermore, we offer a 5 year warranty for added peace of mind.

Features:

Iron Frame, White as Default, Customized Colors Available
Customized Sizes Available on Request
SMD 2835 Adopted, CRI>80, UGR<16
Constant Currrent LED Driver, Efficiency>88%, PF>0.9, THD<15%, TUV/ SAA/ CE/ RoHS Certificated
Ultra High Efficiency Design, 140lm/W for Finished Lamp
Recessed Installation/ Surface Mounting/ Hanging Installation
Triac/ 0-10V/ DALI/ Wireless/ Zigbee Available
5 Years Warranty

Technical Parameters:

Model NO.	HS-GPL-12030	HS-GPL-15030	HS-GPL-16040
Dimensions	120030030MM	150030030MM	160040030MM
Power	45W	55W	55W
Luminous	6300LM	7700LM	7700LM
CCT	3000K/4000K/5000K/6000K
Lumen Efficiency	140LM/W
CRI	80-85Ra
Power Factor	>0.9
Input Voltage	AC200-240V,50/60Hz
Beam Angle	70°
Working Temperature	-20-40℃
Main Material	PC Lens+Iron
IK Rating	IK09
Frame Color	White
Warranty	5 Years
Certification	CE,RoHs

Applications:

lt is designed for general lighting applicationsin office, supermarket, shop, school, hotel, etc.lt is also widely used for public areas, such asstairway, lobby, reception, corridors etc.

Its IK Rating is IK09, There is no problem using it in special places such as basketball courts.

Customization:

With our highly trained and certified technicians, we can offer customization service for all your request including: customized dimensions, cutout, power, CCT, sensor, emergency pack and also smart control systems.

Support and Services:

We are committed to providing our customers with the best technical support and service for our LED Gille Panel Lights product. Our team of highly trained and certified technicians is available to answer any questions you may have regarding installation, operation, and maintenance of your LED Gille Panel Lights.

We offer online technical support and service via our website and email, as well as telephone support. In addition, we provide on-site technical assistance for installation, repair, and troubleshooting of your LED Gille Panel Lights.

We offer 5 years warranty for almost all of our LED Gille Panel Lights. Any non-artificial damaged parts within warranty period should be covered a free replacement by us. We will bear the shipment cost.
