Place of Origin: | China |
Brand Name: | HS |
Certification: | CE RoHS |
Model Number: | HS-LLL-B120 |
Minimum Order Quantity: | 100 |
---|---|
Payment Terms: | T/T |
Beam Angle: | 85° | Input Voltage: | AC200-240V, 50/60Hz |
---|---|---|---|
CRI: | Ra>80 | Application: | Indoor Lighting |
Insulation Class: | Class I | THD: | <15% |
Lifespan: | 50,000 Hours | Dimming Type: | Triac Dimming, 0-10V Dimming, DALI Dimming, Smart Wireless Control(Zigbee 3.0 Tuya App) |
Highlight: | 85° Beam Angle LED Linear Lighting,50W LED Linear Lighting,Industrial LED Linear Lighting |
The LED Linear Light Fixture has a total harmonic distortion (THD) of less than 15%, which ensures efficient and stable operation. It is available in different color temperatures such as 3000K, 4000K, 5000K, and 6000K, making it perfect for various lighting scenarios. The CCT Changeable feature allows you to switch between different color temperatures according to your preference.

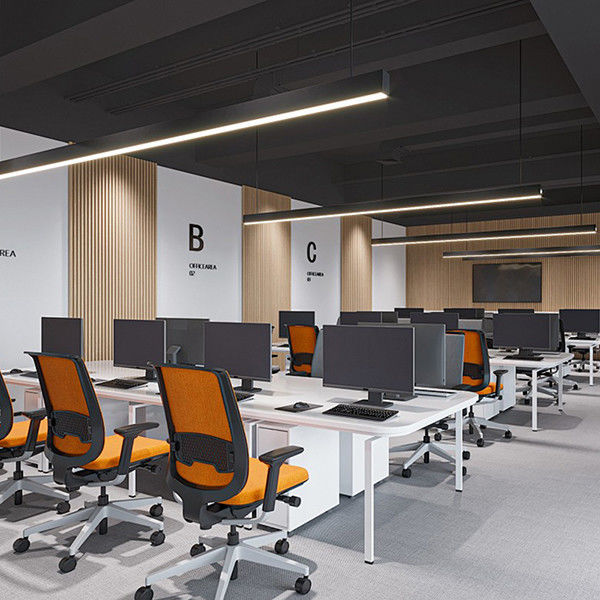

This Dimmable Linear Light is perfect for indoor lighting applications, such as offices, homes, schools, and hospitals. It provides a bright and comfortable lighting experience that helps to increase productivity and well-being. Overall, our LED Linear Light Fixture is an excellent choice for those who need a reliable, efficient, and versatile lighting solution for their indoor spaces.
Model NO. | HS-LLL-B60 | HS-LLL-B100 | HS-LLL-B120 | HS-LLL-B150 |
Dimensions(mm) | 600x50x80 | 1000x50x80 | 1200x50x80 | 1500x50x80 |
Power(W) | 20W | 30W | 36W | 50W |
Luminous(Im) | 2000 | 3000 | 3600 | 5000 |
Lumen Efficiency | 100lm/W |
|||
Color Temperature | 3000K/4000K/5000K/6000K/CCT Changeable | |||
Dimming Type | Triac Dimming,0-10V Dimming,DALI Dimming,Smart Wireless Control(Zigbee 3.0 Tuya App) |
|||
Power Factor | 0.9 | |||
CRI | >80 | |||
UGR | <23,<19 | |||
IP Rating | 20 | |||
Warranty | 5 Years | |||
SDCM | <5 | |||
Beam Angle | 85° | |||
Input Voltage | AC200-240V,50/60Hz | |||
Working Temp | -20℃-40℃ | |||
LED Type | SMD2835 | |||
THD | <15% | |||
Insulation Class | Class l | |||
Safety Standards | EN ICE 60598-2-1 | |||
EMC | EN55015,EN IEC 61000-3-2 |
